CH500 Hoist

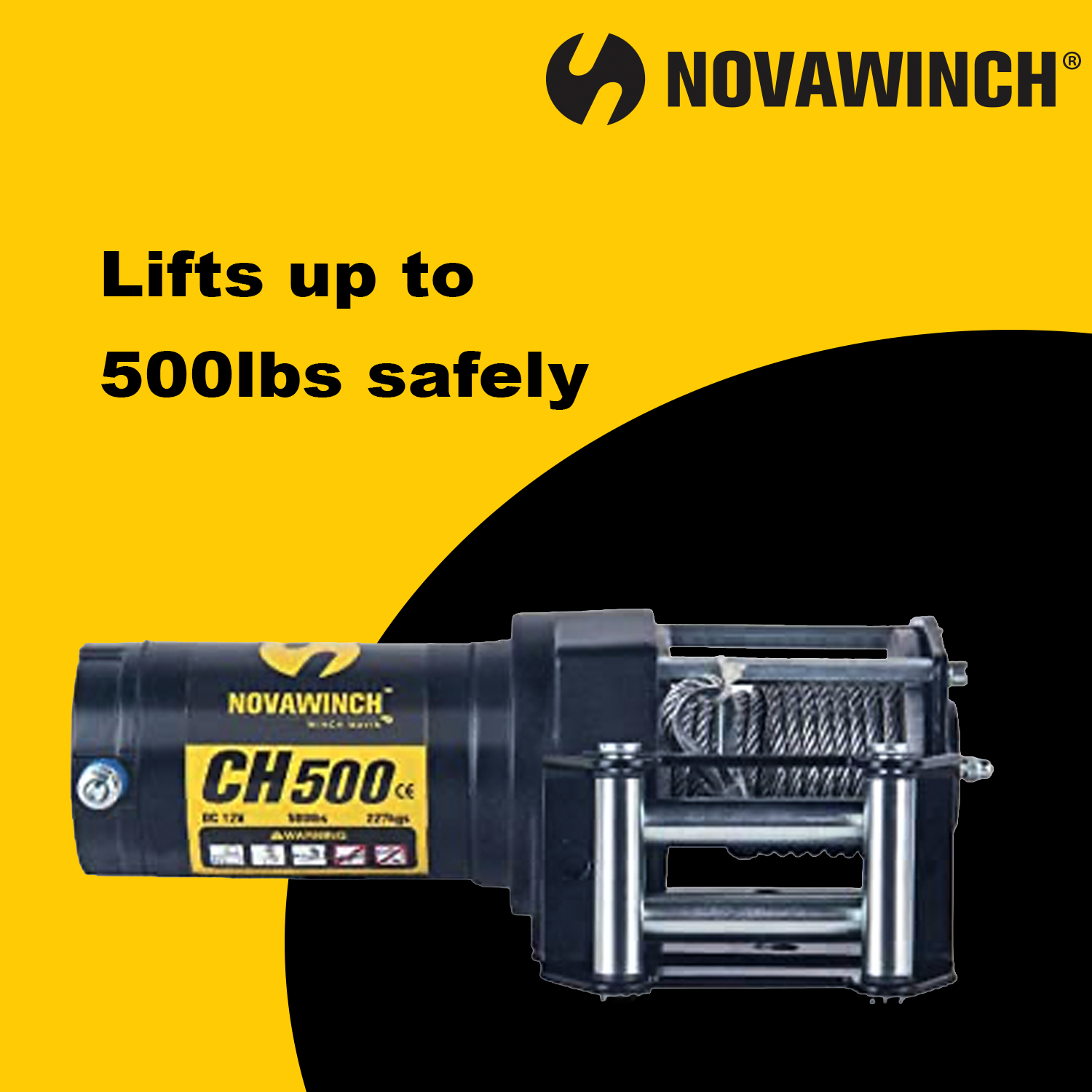

Built with a 4:1 safety rating for lifting, the CH500 is the right winch to safely lift and move materials up to 500lbs. This hoist features full power in and power out and a full-load mechanical brake to ensure secure and easy operation.

Standout features:

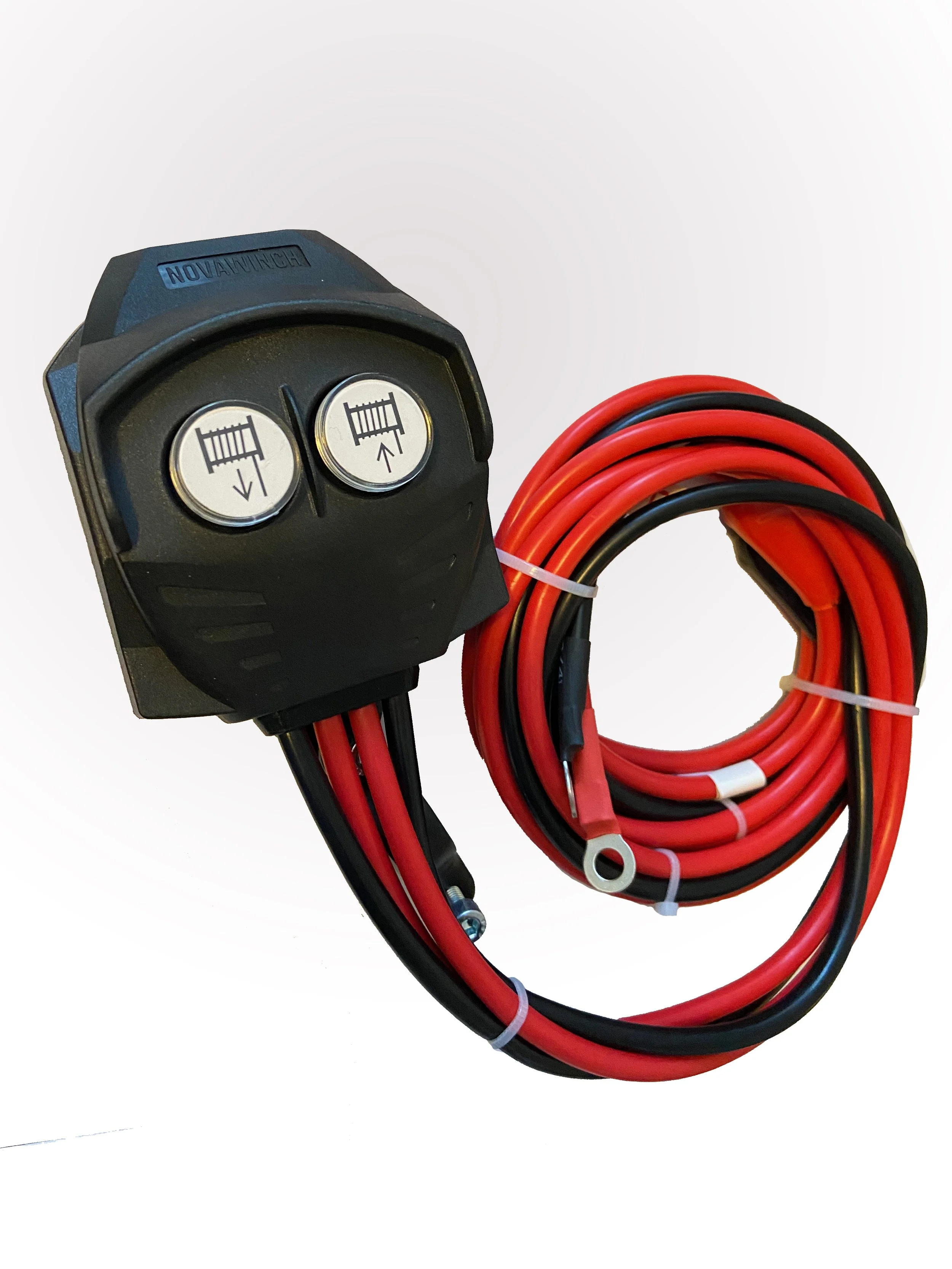

• 5.9’ (1.8m) battery cable, 4.3’ (1.3m) motor cable controller

• Can be mounted vertically or horizontally

• 15’ of aircraft-grade wire cable


Specifications

Rated Line Pull 500lbs(226kgs) single line Motor(Series wound): DC 12V: 0.53hp/0.4kW Gear Box 1-Stage Planetary Gear Ratio 153:1 Braking Action Differential Self-Locking
Fairlead 4-Way Roller Wire Rope 3/16″×15.7′ (4.8mm×4.8m)

Performance

Line Pull lbs (kgs)

• No Load 500 (226)

  • Line Speed FPM(MPM) 11.2 (3.4)

  • Motor Current 18 Amps


• Full Load (500 lbs)

  • Line Speed FPM(MPM) 8.2 (2.5)

  • Motor Current 32 Amps

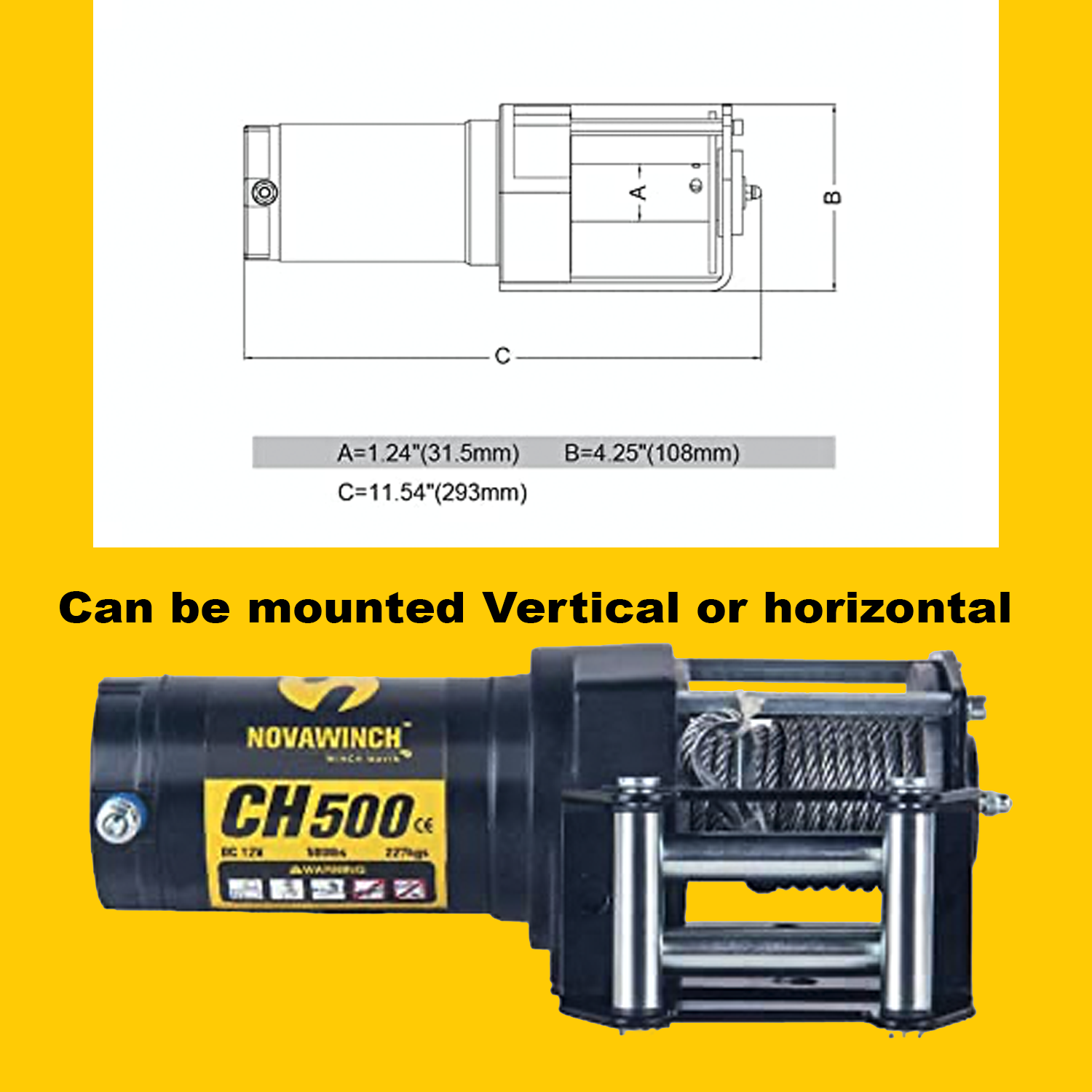

Dimensions

11.81″×3.93″×2.25″(300mm×100mm×108mm) Mounting Bolt Pattern 2-hole 3.12" (79.5mm) Weight 18.7lbs (18.5kgs)
