Features:

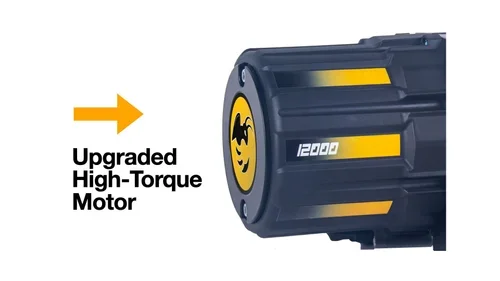

Upgraded Motor - Thicker copper windings deliver more power with ease and cool faster

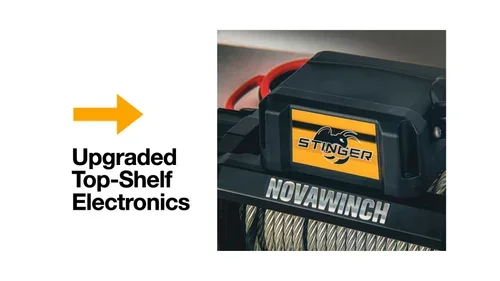

Upgraded Electronics - features our top-shelf solenoid
Upgraded Control: We include our exclusive DUO Wireless/Wired controller for the ultimate in control

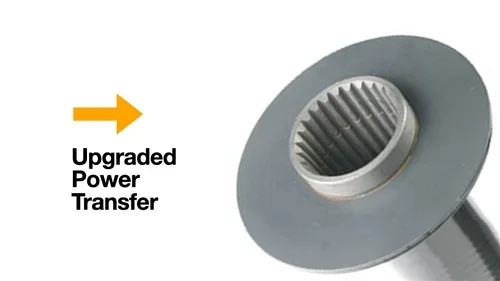

Upgraded Drive: Our large-diameter splined drum maximizes power-transfer
Upgraded Rope: Our high-visibility rope makes rigging safer in low-light operations
Upgraded Weatherproofing: Our IP68 rated seals keep out water, mud, sand and dust
Upgraded Safety: Our pull and turn clutch avoids unintended freespooling on the trail
We believe you can build a high-performance winch at a fair price without cutting corners. From full IP68 weatherproofing to a top-shelf solenoid, our engineers worked overtime fitting all these amazing components into a compact package that fits most applications.
| Stinger 12000 Performance By Layer | ||||
|---|---|---|---|---|
| Layer | Rated Pull | Cable Capacity | ||
| lbs. | kgs | Ft | M | |
| 1 | 12000 | 5548 | 17.7 | 5.4 |
| 2 | 9563 | 4342 | 40.4 | 12.3 |
| 3 | 7949 | 3609 | 66.9 | 20.4 |
| 4 | 6801 | 3087 | 85.3 | 26 |
| Stinger 12000 Performance Max/Min | ||||
|---|---|---|---|---|
| Line Pull | Line Speed | Current | ||
| lbs. | kgs | FPM | MPM | Amps |
| 0 | 0 | 32.8 | 9.5 | 70 |
| 12000 | 5548 | 3.6 | 1.1 | 420 |
| Stinger 12000+ Specifications | |
|---|---|
| Rated Line Pull | 12000 lbs. (5443 kg) |
| Voltage | 12v DC |
| Motor | 7.0hp (5.4kW) |

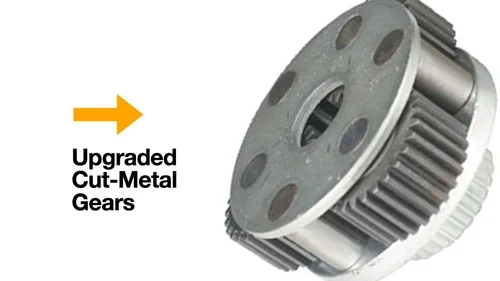

| Gear Train | 3 Stage Planetary |
| Gear Ratio | 196:1 |
| Clutch | Pull & Turn |
| Braking Action | Mechanical, Auto Load Holding |
| Synthetic Rope | 3/8” x 85.3’ (9.2mm x 26m), CNC'd Aluminum Hawse |
| Drum Size | 2.48” x8.8” (63mm x 244mm) |
| Winch Dimensions | 21.257” x 6.49” x9.05” (540x165x230mm) |
| Mounting Bolt Pattern | 10” x 4.5” (254mm x 114.3mm) |
| Remote: | DUO Wireless/Wired, 12’ (3.4m) |
| Weight: | 68.2 lbs (30.9kgs) |
