The T-Series Lineup has all the features you want with the durability and reliability you need. With pulling capacities from 2500-4500lbs, the T series features an all-metal chassis engineered for long life and low maintenance. The Novawinch T-Series offers industrial winch performance in a compact package to conquer even the toughest situations.
Specifications
| Rated Line Pull | 2500lbs (1135kgs) single line |
| Motor: | DC 12V: 2.4hp (1.8kW) |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 180:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Mechanical, Automatic Load Holding |
| Fairlead | 4 Way Roller Fairlead |
| Synthetic Rope | 3/16″ × 45.9′ (Φ4.8mm × 14m) |
| Remote | Waterproof Handheld Remote, 9.85' (3.0m);Waterproof Mini-Rocker Remote 9.85" (3.0m) |
| Dimensions | 12.95″ × 4.53″ × 4.76″ (329mm×115mm×121mm) |
| Mounting Bolt Pattern | 4.9″×3″(124mm×76mm) |
| Weight | 26lbs (11.8kgs) |
Performance
| Line pull lbs(kgs) | No Load | Max Load |
| Line speed FPM(MPM) | 13.1(4.0) | 5.9(1.8) |
| Motor current Amps | 26 | 150 |

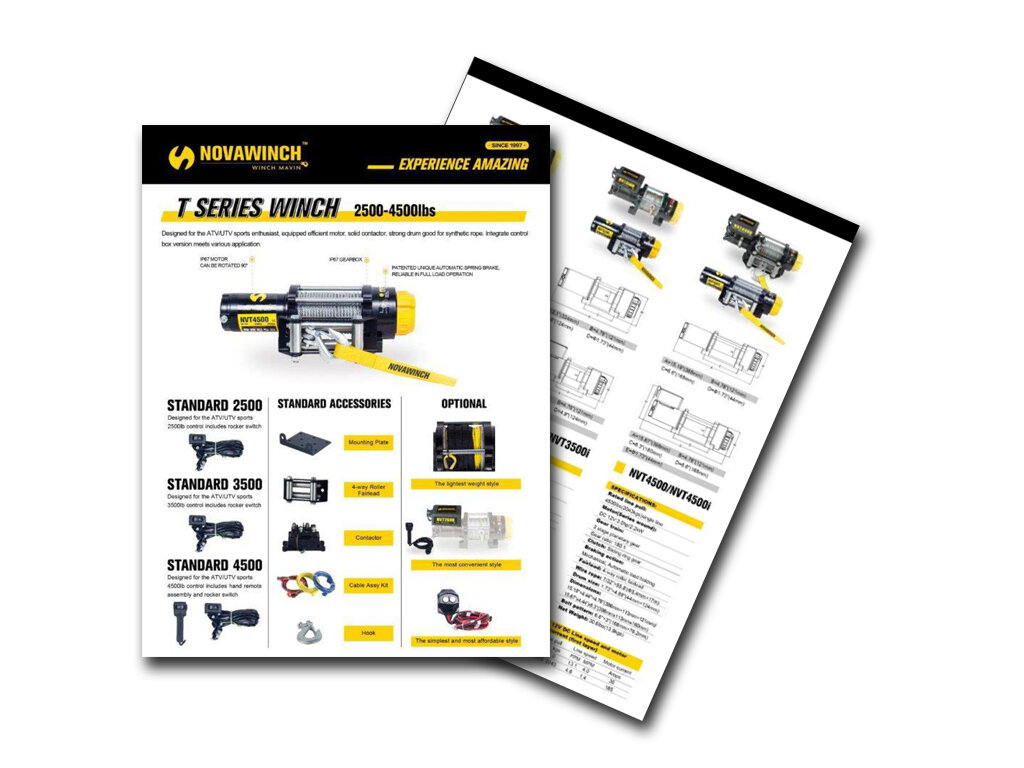

Download our Data Sheet PDF
