Pro 12500 Synthetic Rope
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
5 things to know about this winch:
It's fast. Sealed 6.4 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. Contactor will never get stuck.
IP68 rated keeps elements out and winch running.
Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
Made to last: stainless steel parts, 3 aluminum tie bars for rigidity, and 45 degree clocking freespool for tricky mounts.
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
5 things to know about this winch:
It's fast. Sealed 6.4 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. Contactor will never get stuck.
IP68 rated keeps elements out and winch running.
Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
Made to last: stainless steel parts, 3 aluminum tie bars for rigidity, and 45 degree clocking freespool for tricky mounts.
From fast line speeds to low amp draw and a remarkable brake, this is the top of the line winch without the high price.
5 things to know about this winch:
It's fast. Sealed 6.4 HP motors deliver a quick but safe 52 FPM line speed at a low 50 Amp draw.
Smart electronics: Anti-high temperature silver pad, 500A Sealed contactor. Only 360A full load current which is the lowest in the industry field. Contactor will never get stuck.
IP68 rated keeps elements out and winch running.
Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
Made to last: stainless steel parts, 3 aluminum tie bars for rigidity, and 45 degree clocking freespool for tricky mounts.
Specifications
| Rated Line Pull | 12,500 lbs (5670kgs) |
| Motor(Series wound): | DC 12V: 6.4hp/4.7kW |
| Gear Box | 2-Stage Planetary/2-Stage Spur Gear |
| Gear Ratio | 171:1 |
| Clutch | Pull & Turn |
| Braking Action | Automatic, 100% Load Holding Brake in gear box |
| Fairlead | Aluminum Hawse |
| Synthetic Rope | 3/8″×85.3′(9.2mm×26m) |
| Drum Size | 2.48″×8.74″(63mm×222mm) |
| Remote | Rugged Rubber, Toggle switch, 12' |
| Dimensions | 23.86″×6.77″×9.84″(606mm×172mm×250mm) |
| Mounting Bolt Pattern | 10″×4.5″(254mm×114.3mm) |
| Weight | 68.2 lbs(30.9kgs) |

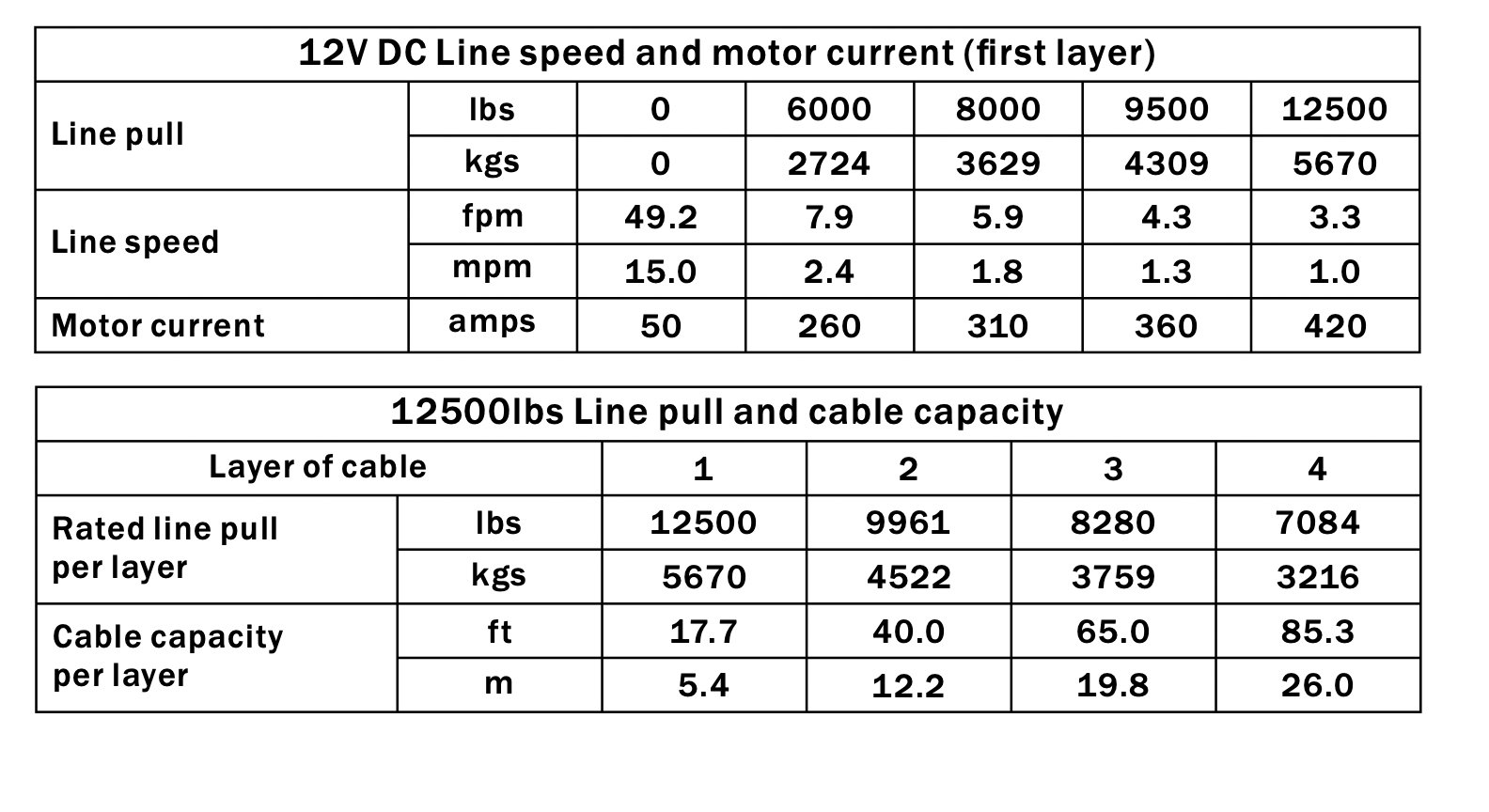

Performance
| Line Pull | No Load | Full Load |
| Line Speed | 49.2 FPM (15 MPM) | 3.3 FPM (1 MPM) |
| Motor Current | 50 Amps | 390 Amps |
Size:
A=23.86″(606mm)
B=8.54″(217mm)
C=9.84″(250mm)
D=10″(254mm)
E=Φ2.48″(63mm)
Grab your copy of our Data Sheet PDf:
