New! Mini Mover 3 12v Motorized Jockey Wheel for Trailers up to 6,000lbs

$0.00

Take the hassle out of trailering with the latest version of the Mini Mover! Built to move and steer trailers into their perfect parking spot fully powered by our strong electric motor. Move up to 6,000lbs of rolling weight (tongue weight of 1,000lbs) over inclines up to 7º with our 8” no-flat all-terrain tire.

Stand Out Features:

  • Mounts easily to almost any trailer frame with clamp or through-bolts

  • Can move up to 6,000lbs of rolling weight and handle up to 1,000 lbs of tongue weight

  • Powers forward and reverse with full steering - makes final positioning a snap

  • Can be removed from trailer with 2 bolts for transport. Clamp stays bolted to trailer.

  • Connects to 12v battery (not included)

  • Can maneuver up a 7º grade, fully loaded

  • Features a 8” no flat adventure tread tire

  • The Mini Mover 3 standard model needs 15” minimum between the ground and trailer frame.  It can extend to cover a trailer frame that is 30” from ground at maximum.

  • Amp draw: 50amps

Take the hassle out of trailering with the latest version of the Mini Mover! Built to move and steer trailers into their perfect parking spot fully powered by our strong electric motor. Move up to 6,000lbs of rolling weight (tongue weight of 1,000lbs) over inclines up to 7º with our 8” no-flat all-terrain tire.

Stand Out Features:

  • Mounts easily to almost any trailer frame with clamp or through-bolts

  • Can move up to 6,000lbs of rolling weight and handle up to 1,000 lbs of tongue weight

  • Powers forward and reverse with full steering - makes final positioning a snap

  • Can be removed from trailer with 2 bolts for transport. Clamp stays bolted to trailer.

  • Connects to 12v battery (not included)

  • Can maneuver up a 7º grade, fully loaded

  • Features a 8” no flat adventure tread tire

  • The Mini Mover 3 standard model needs 15” minimum between the ground and trailer frame.  It can extend to cover a trailer frame that is 30” from ground at maximum.

  • Amp draw: 50amps

MANUAL PDF
DATA SHEET PDF

Frequently Asked Questions:

  • The Mini Mover is a powered jockey wheel that attaches to your trailer and your 12v battery

  • No. The Mini Mover only comes with 5’ battery leads to connect to a 12v battery (one side is a quick connect, the other battery ring terminals).

  • Yes! The Mini Mover arm allows you to turn the wheel in both forward and reverse or even coasting.

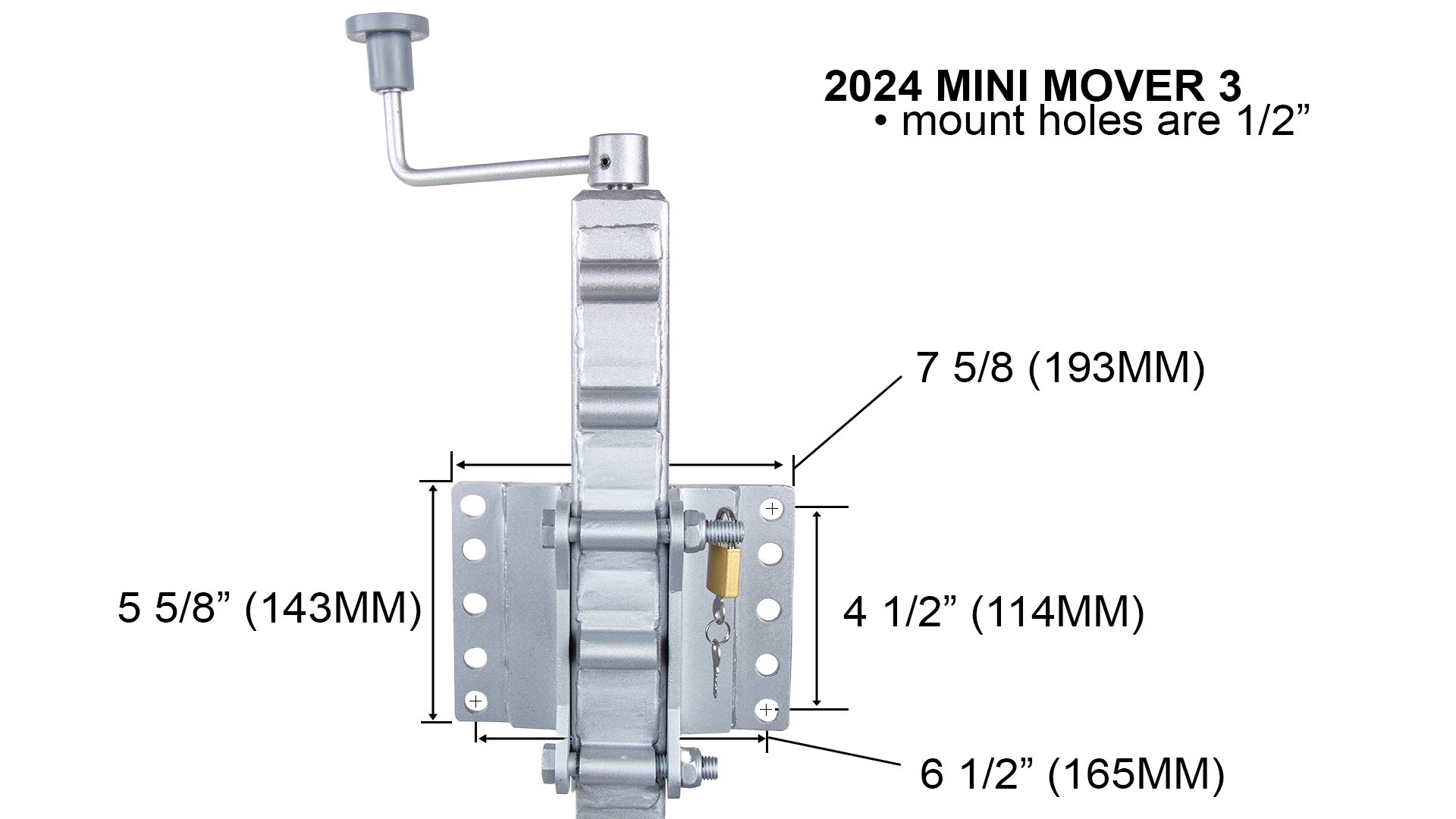

  • The Mini Mover 3 can install to your trailer 2 different ways: use the included hardware to sandwich your trailer frame with our clamp or drill through your trailer frame. Either way will give your Mini Mover a firm installation.

  • The Mini Mover travels at 26 feet per minute giving you pinpoint accuracy to move your trailer to a safe location.

  • We recommend removing the Mini Mover 3 via the two bolts on the front of the unit. The clamp stays securely bolted to the trailer and the unit is stored elsewhere.

    The Mini Mover 3 PLUS can pivot 90 degrees and stay with the trailer.

Check out our Mini Mover 3 PLUS - which adds the ability to pivot 90 degrees with no tools quickly and easily for transport. Hit the link to learn more.

Upgrade to the Mini Mover Plus
Specifications
Model Novawinch Mini Mover 3 12v Electric Jockey Wheel for Trailers
Voltage 12v DC
Battery Recommendation 12v 20Ah lead-acid battery or jumpstart battery (amp draw is 50amps)
Maximum Capacity 6000lbs. (2722kg) on level ground
Speed 23 fpm (7mpm)
Motor Power 0.7 hp (550W)
Brake Automatically Engages
Max Incline 7 degrees
Max Jockey Wheel Load 1100 lbs. (498kg)
Gear Ratio 494:1
Battery Cable Length 54" (137cm)
Steering 360º Steering Mast Included
